How can I get a price quote for Dodge F4S-IP-206R?

You can request a fast quote for Dodge F4S-IP-206R from Yılsa Engineering. Reference part number YLS49NKYYANF8ZK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-206R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-206R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-206R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

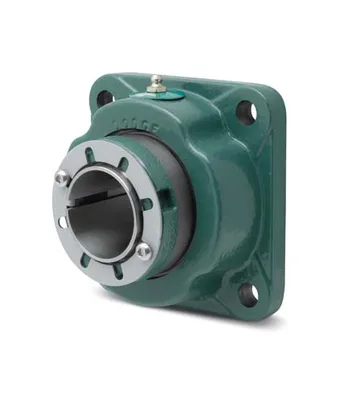

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge F4S-IP-206R

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4S-IP-206RSKU # YLS49NKYYANF8ZK

Bore Diameter2-3/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4S-IP-206R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-3/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.42 in

SeriesF4S-IP

Manufacturer Catalog Number069707

UPC_NO782475309436

Weight12.230 lbs

Dynamic Load Capacity39000 lbf

Housing Type4-Bolt Flange

Max Rpm2400 rpm

Static Load Capacity47500 lbf

Description069707 F4S-IP-206R

Max Bolt Hole Spacing4.7800 in

Min Bolt Hole Spacing4.7800 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter120 mm

Housing DimensionsS-2000

Material069707

Sensor ReadyYes

Long DescriptionThe F4S-IP-206R is a spherical roller bearing unit, 4-bolt flange type with a 2-3/8 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 12.230 lbs.
