How can I get a price quote for Dodge F4S-IP-203LE?

You can request a fast quote for Dodge F4S-IP-203LE from Yılsa Engineering. Reference part number YLS0727TWY7MUSH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-203LE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-203LE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-203LE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

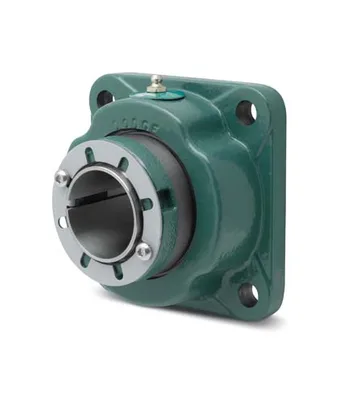

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge F4S-IP-203LE

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F4S-IP-203LESKU # YLS0727TWY7MUSH

Bore Diameter2-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge F4S-IP-203LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.03 in

SeriesF4S-IP

Manufacturer Catalog Number069789

UPC_NO782475314096

Weight9.270 lbs

Dynamic Load Capacity27000 lbf

Housing Type4-Bolt Flange

Max Rpm4500 rpm

Static Load Capacity29000 lbf

Description069789 F4S-IP-203LE

Max Bolt Hole Spacing4.5200 in

Min Bolt Hole Spacing4.5200 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter100 mm

Housing DimensionsS-2000

Material069789

Sensor ReadyYes

Long DescriptionThe F4S-IP-203LE is a spherical roller expansion bearing unit, 4-bolt flange type with a 2-3/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and labyrinth seal in the F4S-IP series. The unit weighs 9.270 lbs.
