How can I get a price quote for Dodge F4S-IP-108L?

You can request a fast quote for Dodge F4S-IP-108L from Yılsa Engineering. Reference part number YLSY6YHMX4IS5YV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-108L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-108L genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-108L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

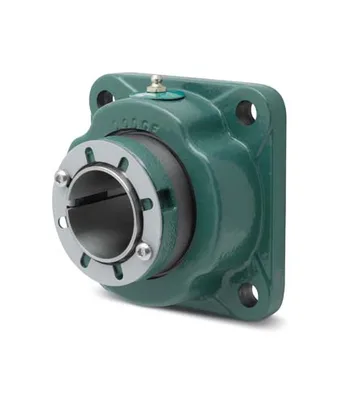

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge F4S-IP-108L

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-1/2 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4S-IP-108LSKU # YLSY6YHMX4IS5YV

Bore Diameter1-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-1/2 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4S-IP-108L

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.63 in

SeriesF4S-IP

Manufacturer Catalog Number069754

UPC_NO782475309788

Weight5.400 lbs

Dynamic Load Capacity20800 lbf

Housing Type4-Bolt Flange

Max Rpm6000 rpm

Static Load Capacity21000 lbf

Description069754 F4S-IP-108L

Max Bolt Hole Spacing3.5300 in

Min Bolt Hole Spacing3.5300 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter80 mm

Housing DimensionsS-2000

Material069754

Sensor ReadyYes

Long DescriptionThe F4S-IP-108L is a spherical roller bearing unit, 4-bolt flange type with a 1-1/2 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and labyrinth seal in the F4S-IP series. The unit weighs 5.400 lbs.
