How can I get a price quote for Dodge F4S-IP-090MR?

You can request a fast quote for Dodge F4S-IP-090MR from Yılsa Engineering. Reference part number YLSDYPP48CGEEBX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-090MR in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-090MR genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-090MR?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

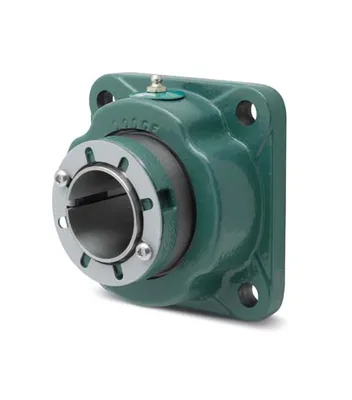

Dodge F4S-IP-090MR

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 90 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4S-IP-090MRSKU # YLSDYPP48CGEEBX

Product TypeFlange-Mount Roller Bearing Units

Bore Diameter90 mm

Bore Length4.7 in

Country of OriginUS

Description078029 F4S-IP-090MR

Dynamic Load Capacity83000 lbf

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 90 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4S-IP-090MR

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product TypeFlange-Mount Roller Bearing Units

Bore Diameter90 mm

Bore Length4.7 in

Country of OriginUS

Description078029 F4S-IP-090MR

Dynamic Load Capacity83000 lbf

Expansion TypeNon-Expansion Bearing (Fixed)

UPC_NO782476581848

Grease TypeMobilGrease XHP222

Housing ConstructionSolid

Housing DimensionsS-2000

Housing MaterialCast Iron

Housing Type4-Bolt Flange

Insert MaterialSteel

Insert Outer Diameter180 mm

Locking DeviceAdapter Mounted

LubricationGrease

Manufacturer Catalog Number078029

Material078029

Max Bolt Hole Spacing7.6100 in

Max Rpm1530 rpm

Min Bolt Hole Spacing7.6100 in

Mounting Type4-Bolt Flange

Seal TypeTriple-Lip Contact Seal

Sensor ReadyYes

SeriesF4S-IP

Shaft AttachmentPush-Pull Adapter

Static Load Capacity104000 lbf

Type Of BearingSpherical Roller

Weight34.730 lbs

Long DescriptionThe F4S-IP-090MR is a spherical roller bearing unit, 4-bolt flange type with a 90 mm bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 34.730 lbs.
