How can I get a price quote for Dodge F4S-IP-075MLE-DRY?

You can request a fast quote for Dodge F4S-IP-075MLE-DRY from Yılsa Engineering. Reference part number YLSOMTUB83URHMU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-075MLE-DRY in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-075MLE-DRY genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-075MLE-DRY?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

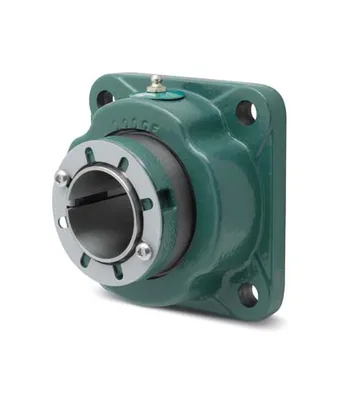

Dodge F4S-IP-075MLE-DRY

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 75 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F4S-IP-075MLE-DRYSKU # YLSOMTUB83URHMU

Bore Diameter75 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 75 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge F4S-IP-075MLE-DRY

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter75 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeNone

LubricationNone

Bore Length3.5 in

SeriesF4S-IP

Manufacturer Catalog Number139313

UPC_NO782477196720

Dynamic Load Capacity41500 lbf

Housing Type4-Bolt Flange

Max Rpm3400 rpm

Static Load Capacity53000 lbf

Description139313 F4S-IP-075MLE-DRY FLG

Max Bolt Hole Spacing5.5600 in

Min Bolt Hole Spacing5.5600 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter130 mm

Housing DimensionsS-2000

Material139313

Sensor ReadyYes

Long DescriptionThe F4S-IP-075MLE-DRY is a spherical roller expansion bearing unit, 4-bolt flange type with a 75 mm bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and labyrinth seal in the F4S-IP series. The unit weighs 18.160 lbs.
