How can I get a price quote for Dodge F4S-IP-060MR?

You can request a fast quote for Dodge F4S-IP-060MR from Yılsa Engineering. Reference part number YLS11WDMU88ZYFH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4S-IP-060MR in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4S-IP-060MR genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4S-IP-060MR?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

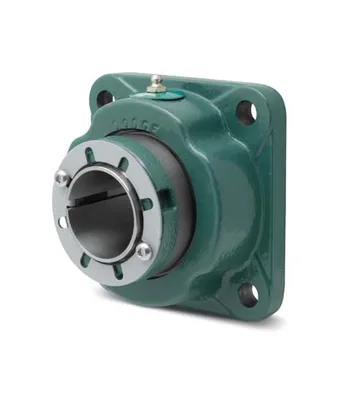

Dodge F4S-IP-060MR

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 60 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4S-IP-060MRSKU # YLS11WDMU88ZYFH

Bore Diameter60 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.7500 in

Bolt Center To Center Length4.7800 in

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 60 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4S-IP-060MR

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter60 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.7500 in

Bolt Center To Center Length4.7800 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.42 in

SeriesF4S-IP

Manufacturer Catalog Number074532

UPC_NO782476470173

Weight12.640 lbs

Housing Type4-Bolt Flange

Description074532 F4S-IP-060MR

Max Bolt Hole Spacing4.7800 in

Min Bolt Hole Spacing4.7800 in

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material074532

Sensor ReadyYes

Long DescriptionThe F4S-IP-060MR is a spherical roller bearing unit, 4-bolt flange type with a 60 mm bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 12.640 lbs.
