How can I get a price quote for Dodge F4R-S2-300R?

You can request a fast quote for Dodge F4R-S2-300R from Yılsa Engineering. Reference part number YLSRCR6KK07WV3D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4R-S2-300R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4R-S2-300R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4R-S2-300R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

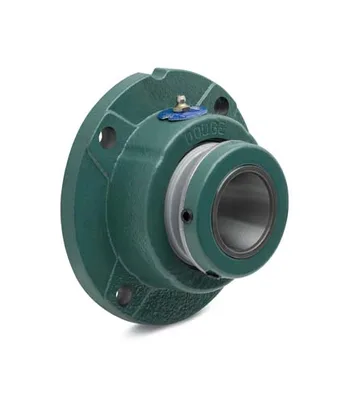

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge F4R-S2-300R

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 3 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4R-S2-300RSKU # YLSRCR6KK07WV3D

Bore Diameter3 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter7.8750 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 3 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4R-S2-300R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter7.8750 in

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.5 in

SeriesF4R-S2

Manufacturer Catalog Number070450

UPC_NO782475306688

Dynamic Load Capacity41500 lbf

Housing Type4-Bolt Round

Max Rpm1490 rpm

Static Load Capacity53000 lbf

Description070450 F4R-S2-300R

Max Bolt Hole Spacing5.5600 in

Min Bolt Hole Spacing5.5600 in

Shaft AttachmentSetscrew

Insert Outer Diameter130 mm

Housing DimensionsS-2000

Material070450

Sensor ReadyYes

Long DescriptionThe F4R-S2-300R is a spherical roller bearing unit, 4-bolt round flange type with a 3 in bore diameter, non-expansion (fixed) bearing and 7.8750 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4R-S2 series. It weighs 24.580 lbs.
