How can I get a price quote for Dodge F4R-IP-206R?

You can request a fast quote for Dodge F4R-IP-206R from Yılsa Engineering. Reference part number YLSYID3IL3DSUH8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4R-IP-206R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4R-IP-206R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4R-IP-206R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

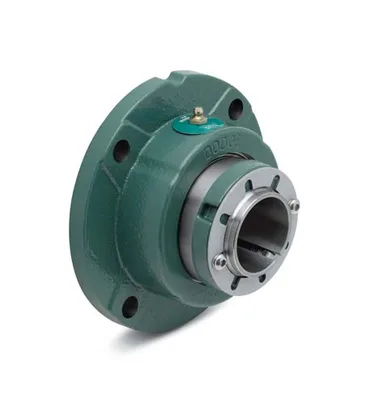

Dodge F4R-IP-206R

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4R-IP-206RSKU # YLSYID3IL3DSUH8

Product TypeFlange-Mount Roller Bearing Units

Bolt Circle Diameter6.7500 in

Bore Diameter2-3/8 in

Bore Length3.42 in

Country of OriginUS

Description069606 F4R-IP-206R

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4R-IP-206R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product TypeFlange-Mount Roller Bearing Units

Bolt Circle Diameter6.7500 in

Bore Diameter2-3/8 in

Bore Length3.42 in

Country of OriginUS

Description069606 F4R-IP-206R

Dynamic Load Capacity39000 lbf

Expansion TypeNon-Expansion Bearing (Fixed)

UPC_NO782475309030

Grease TypeMobilGrease XHP222

Housing ConstructionSolid

Housing DimensionsS-2000

Housing MaterialCast Iron

Housing Type4-Bolt Round

Insert MaterialSteel

Insert Outer Diameter120 mm

Locking DeviceAdapter Mounted

LubricationGrease

Manufacturer Catalog Number069606

Material069606

Max Bolt Hole Spacing4.7700 in

Max Rpm2400 rpm

Min Bolt Hole Spacing4.7700 in

Mounting Type4-Bolt Flange

Seal TypeTriple-Lip Contact Seal

Sensor ReadyYes

SeriesF4R-IP

Shaft AttachmentPush-Pull Adapter

Static Load Capacity47500 lbf

Type Of BearingSpherical Roller

Weight12.230 lbs

Long DescriptionThe F4R-IP-206R is a spherical roller bearing unit, 4-bolt round flange type with a 2-3/8 in bore diameter, non-expansion (fixed) bearing and 6.7500 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4R-IP series. The unit weighs 12.230 lbs.
