How can I get a price quote for Dodge F4R-IP-206LE?

You can request a fast quote for Dodge F4R-IP-206LE from Yılsa Engineering. Reference part number YLS85UWUT9CS93L. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4R-IP-206LE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4R-IP-206LE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4R-IP-206LE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

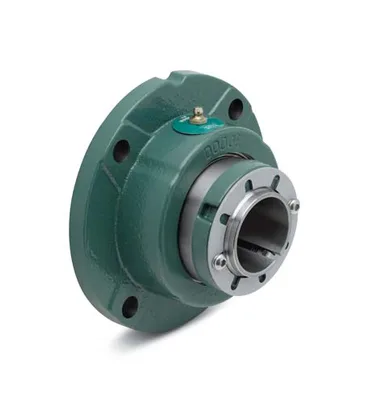

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge F4R-IP-206LE

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F4R-IP-206LESKU # YLS85UWUT9CS93L

Bore Diameter2-3/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.7500 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge F4R-IP-206LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-3/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter6.7500 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.42 in

SeriesF4R-IP

Manufacturer Catalog Number069686

UPC_NO782475313716

Dynamic Load Capacity39000 lbf

Housing Type4-Bolt Round

Max Rpm3800 rpm

Static Load Capacity47500 lbf

Description069686 F4R-IP-206LE

Max Bolt Hole Spacing4.7700 in

Min Bolt Hole Spacing4.7700 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter120 mm

Housing DimensionsS-2000

Material069686

Sensor ReadyYes

Long DescriptionThe F4R-IP-206LE is a spherical roller expansion bearing unit, 4-bolt round flange type with a 2-3/8 in bore diameter, floating bearing and 6.7500 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and labyrinth seal in the F4R-IP series. It weighs 12.230 lbs.
