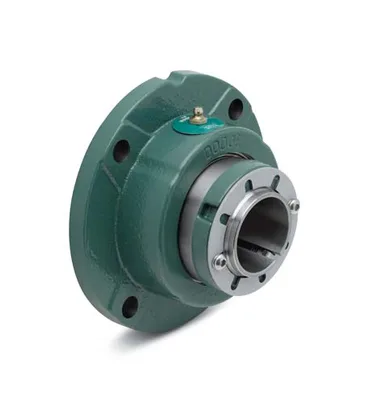

Dodge F4R-IP-060MR

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 60 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4R-IP-060MRSKU # YLSMJLZAVVF85LZ

Bore Diameter60 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter7.8750 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 60 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4R-IP-060MR

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter60 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Circle Diameter7.8750 in

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.42 in

SeriesF4R-IP

Manufacturer Catalog Number081134

UPC_NO782477121807

Weight10.500 lbs

Dynamic Load Capacity39000 lbf

Housing Type4-Bolt Round

Max Rpm2400 rpm

Static Load Capacity47500 lbf

DescriptionF4R-IP-060MR BEARINGS

Max Bolt Hole Spacing5.5600 in

Min Bolt Hole Spacing5.5600 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter120 mm

Housing DimensionsS-2000

Material081134

Sensor ReadyYes

Long DescriptionThe F4R-IP-060MR is a spherical roller bearing unit, 4-bolt round flange type with a 60 mm bore diameter, non-expansion (fixed) bearing and 7.8750 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4R-IP series. The unit weighs 10.500 lbs.
