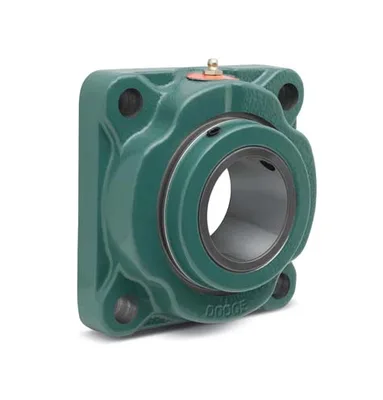

Dodge F4B-UN2-200E

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

DodgeMFR # F4B-UN2-200ESKU # YLSI6LM4AQE6UF6

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

Dodge F4B-UN2-200E

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeSingle Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.86 in

SeriesF4B-UN2

Manufacturer Catalog Number048056

UPC_NO782475772438

Dynamic Load Capacity22000 lbf

Housing Type4-Bolt Flange

Max Rpm2625 rpm

Static Load Capacity24000 lbf

Description048056 F4BUN2200E EXP FLG

Max Bolt Hole Spacing4.0600 in

Min Bolt Hole Spacing4.0600 in

Shaft AttachmentSetscrew

Insert Outer Diameter90 mm

Material048056

Long DescriptionThe F4B-UN2-200E is a spherical roller expansion bearing unit, 4-bolt flange type with a 2 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4B-UN2 series. It weighs 6.830 lbs.
