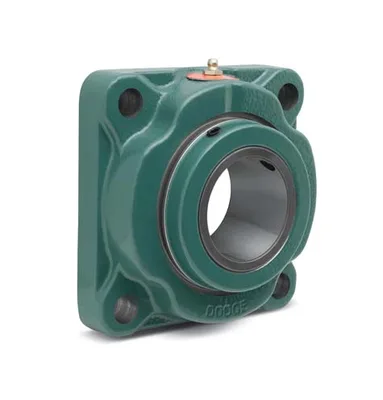

Dodge F4B-UN2-112E

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-3/4 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

DodgeMFR # F4B-UN2-112ESKU # YLSA7C4M21AV7IJ

Product TypeFlange-Mount Roller Bearing Units

Bore Diameter1-3/4 in

Bore Length1.9100 in

Country of OriginUS

Description048054 F4BUN2112E EXP FLG

Dynamic Load Capacity20800 lbf

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-3/4 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

Dodge F4B-UN2-112E

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product TypeFlange-Mount Roller Bearing Units

Bore Diameter1-3/4 in

Bore Length1.9100 in

Country of OriginUS

Description048054 F4BUN2112E EXP FLG

Dynamic Load Capacity20800 lbf

Expansion TypeExpansion Bearing (Floating)

UPC_NO782475768561

Grease TypeMobilGrease XHP222

Housing ConstructionSolid

Housing MaterialDuctile Iron

Housing Type4-Bolt Flange

Insert MaterialSteel

Insert Outer Diameter85 mm

Locking DeviceSet Screw

LubricationGrease

Manufacturer Catalog Number048054

Material048054

Max Bolt Hole Spacing3.9100 in

Max Rpm2800 rpm

Min Bolt Hole Spacing3.9100 in

Mounting Type4-Bolt Flange

Seal TypeSingle Lip Contact Seal

SeriesF4B-UN2

Shaft AttachmentSetscrew

Static Load Capacity22000 lbf

Type Of BearingSpherical Roller

Weight6.180 lbs

Long DescriptionThe F4B-UN2-112E is a spherical roller expansion bearing unit, 4-bolt flange type with a 1-3/4 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4B-UN2 series. The unit weighs 6.180 lbs.
