How can I get a price quote for Dodge F4B-UN2-111E?

You can request a fast quote for Dodge F4B-UN2-111E from Yılsa Engineering. Reference part number YLSDZOQJJNHJ4LC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-UN2-111E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-UN2-111E genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-UN2-111E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

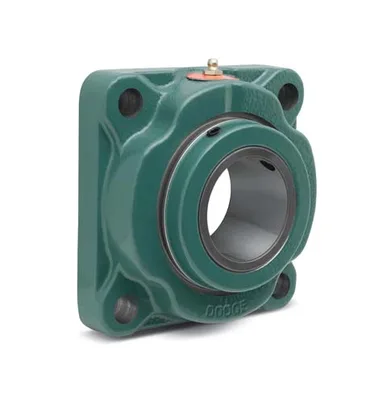

Dodge F4B-UN2-111E

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

DodgeMFR # F4B-UN2-111ESKU # YLSDZOQJJNHJ4LC

Bore Diameter1-11/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

Dodge F4B-UN2-111E

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-11/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeSingle Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length1.9100 in

SeriesF4B-UN2

Manufacturer Catalog Number048053

UPC_NO782475768790

Weight6.310 lbs

Dynamic Load Capacity20800 lbf

Housing Type4-Bolt Flange

Max Rpm2800 rpm

Static Load Capacity22000 lbf

Description048053 F4BUN2111E EXP FLG

Max Bolt Hole Spacing3.9100 in

Min Bolt Hole Spacing3.9100 in

Shaft AttachmentSetscrew

Insert Outer Diameter85 mm

Material048053

Long DescriptionThe F4B-UN2-111E is a spherical roller expansion bearing unit, 4-bolt flange type with a 1-11/16 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4B-UN2 series. The unit weighs 6.310 lbs.
