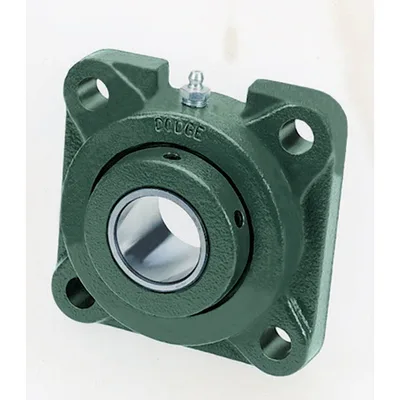

Dodge F4B-UN2-080ME

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 80 mm Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing, Standard Duty

DodgeMFR # F4B-UN2-080MESKU # YLSQV8CST6SEDN2

Bore Diameter80 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Bolt Center To Center Length171 mm

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 80 mm Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing, Standard Duty

Dodge F4B-UN2-080ME

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter80 mm

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Bolt Center To Center Length171 mm

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Duty TypeStandard Duty

Housing ConstructionSolid

Overall Length Diameter212 mm

Finish CoatingUncoated

Type Of BearingSpherical Roller

Bore TypeStraight

Seal TypeTrident Triple-Lip Contact Seal

Overall Height212 mm

Overall Depth78 mm

Radial Dynamic Load Capacity285 kN

Lubrication TypeLubrication Fitting

Standards MetAFBMA, AGMA, ASMMA, ASTM A48 Class 30, BSA, CMA, MPTA, PTDA, UL

SeriesF4B-UN2

Manufacturer Catalog Number048224

UPC_NO782475773060

Weight27.24 lbs

Housing Type4-Bolt Flange

Max Rpm1400 rpm

Long DescriptionThe F4B-UN2-080ME is a spherical roller expansion bearing unit, 4-bolt flange type with an 80 mm bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4B-UN2 series. The unit weighs 27.24 lbs.
