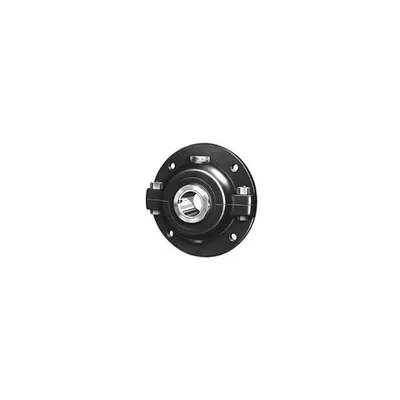

Dodge F4B-SD-600E

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 6 in Bore , 4-Bolt Round Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing, Special Duty

DodgeMFR # F4B-SD-600ESKU # YLSDV3Q0QHNQHDB

Bore Diameter6 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Center To Center Length15.9100 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 6 in Bore , 4-Bolt Round Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing, Special Duty

Dodge F4B-SD-600E

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter6 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Bolt Center To Center Length15.9100 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Duty TypeSpecial Duty

Housing ConstructionSplit

Overall Length Diameter25.5000 in

Finish CoatingUncoated

Type Of BearingTapered Roller

Bore TypeStraight

Seal TypePiston Ring Seal

Overall Depth12 in

Radial Dynamic Load Capacity62000 lbf

Lubrication TypeLubrication Fitting

Standards MetAFBMA, AGMA, ASMMA, ASTM A48 Class 30, BSA, CMA, MPTA, PTDA, UL

SeriesF4B-SD

Manufacturer Catalog Number104019

UPC_NO782475390366

Weight560 lbs

Housing Type4-Bolt Flange

Max Rpm860 rpm

Long DescriptionThe F4B-SD-600E is a tapered roller expansion bearing unit, 4-bolt flange type with a 6 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and piston ring seal in the F4B-SD series. The unit weighs 560 lbs.
