How can I get a price quote for Dodge F4B-SD-400E?

You can request a fast quote for Dodge F4B-SD-400E from Yılsa Engineering. Reference part number YLS66Q05L2T85VT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-SD-400E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-SD-400E genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-SD-400E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

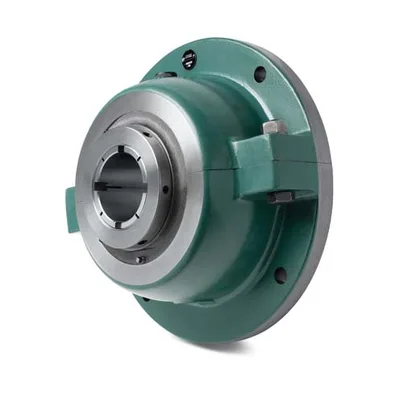

Dodge F4B-SD-400E

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 4 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F4B-SD-400ESKU # YLS66Q05L2T85VT

Bore Diameter4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 4 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge F4B-SD-400E

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length8.5000 in

SeriesF4B-SD

Manufacturer Catalog Number104003

UPC_NO782475054435

Weight234.000 lbs

Dynamic Load Capacity35145 lbf

Housing TypeFour-Bolt Flange

Max Rpm1250 rpm

Description104003 F4BSD400E EXP FLG

Maximum Speed1250 rpm

Shaft AttachmentTapered Adapter

Material104003

Long DescriptionThe F4B-SD-400E is a tapered roller expansion bearing unit, 4-bolt flange type with a 4 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and piston ring seal in the F4B-SD series. The unit weighs 234.000 lbs.
