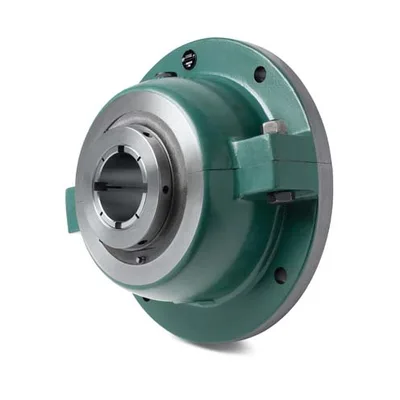

Dodge F4B-SD-308

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 3-1/2 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4B-SD-308SKU # YLSC5B5T9MNM7XX

Bore Diameter3-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 3-1/2 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4B-SD-308

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length6.3800 in

SeriesF4B-SD

Manufacturer Catalog Number104181

UPC_NO782475055463

Weight139.000 lbs

Dynamic Load Capacity23553 lbf

Housing TypeFour-Bolt Flange

Max Rpm1250 rpm

Description104181 F4BSD308 NE FLG

Maximum Speed1250 rpm

Shaft AttachmentTapered Adapter

Material104181

Long DescriptionThe F4B-SD-308 is a tapered roller bearing unit, 4-bolt flange type with a 3-1/2 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and piston ring seal in the F4B-SD series. The unit weighs 139.000 lbs.
