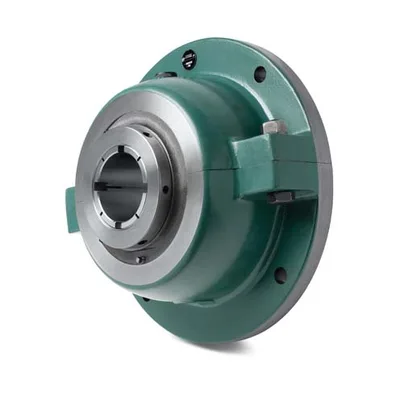

Dodge F4B-SD-206

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4B-SD-206SKU # YLS122D4I1WK4XY

Bore Diameter2-3/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 2-3/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4B-SD-206

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-3/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length5.0600 in

SeriesF4B-SD

Manufacturer Catalog Number104169

UPC_NO782475055364

Weight63.000 lbs

Dynamic Load Capacity11010 lbf

Housing TypeFour-Bolt Flange

Max Rpm2000 rpm

Description104169 F4BSD206 NE FLG

Maximum Speed2000 rpm

Shaft AttachmentTapered Adapter

Material104169

Long DescriptionThe F4B-SD-206 is a tapered roller bearing unit, 4-bolt flange type with a 2-3/8 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and piston ring seal in the F4B-SD series. The unit weighs 63.000 lbs.
