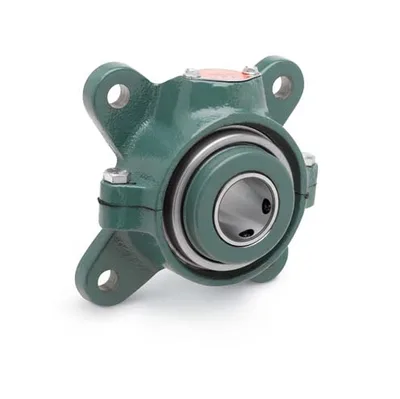

Dodge F4B-K-115L-DRY

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

DodgeMFR # F4B-K-115L-DRYSKU # YLSIFG617IZWSQN

Bore Diameter1-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

Dodge F4B-K-115L-DRY

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeNone

LubricationNone

Radial Dynamic Load Capacity9300 lbf

Radial Static Load Capacity43000 lbf

Bore Length3.13 in

SeriesF4B-K

Manufacturer Catalog Number054496

UPC_NO782475968558

Weight15.100 lbs

Dynamic Load Capacity9300 lbf

Housing TypeFour-Bolt Flange

Max Rpm3050 rpm

Static Load Capacity43000 lbf

Description054496 F4B-K-115L-DRY

Maximum Speed3050 rpm

Shaft AttachmentSetscrew

Material054496

Long DescriptionThe F4B-K-115L-DRY is a tapered roller bearing unit, 4-bolt flange type with a 1-15/16 in bore diameter, non-expansion (fixed) bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and labyrinth seal in the F4B-K series. The unit weighs 15.100 lbs.
