How can I get a price quote for Dodge F4B-K-103RE?

You can request a fast quote for Dodge F4B-K-103RE from Yılsa Engineering. Reference part number YLSEPDXYILKN9W8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-K-103RE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-K-103RE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-K-103RE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

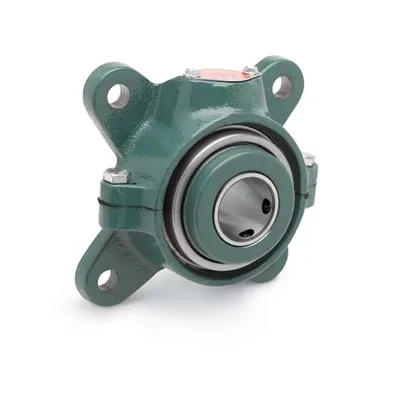

Dodge F4B-K-103RE

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

DodgeMFR # F4B-K-103RESKU # YLSEPDXYILKN9W8

Bore Diameter1-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

Dodge F4B-K-103RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Radial Dynamic Load Capacity3450 lbf

Radial Static Load Capacity15760 lbf

Bore Length2.56 in

SeriesF4B-K

Manufacturer Catalog Number023233

Dynamic Load Capacity3450 lbf

Housing TypeFour-Bolt Flange

Max Rpm4490 rpm

Static Load Capacity15760 lbf

Description023233 F4BK103RE EXP FLG BRG

Maximum Speed4490 rpm

Shaft AttachmentSetscrew

Take Up Frame SizeTS-300

Material023233

Long DescriptionThe F4B-K-103RE is a tapered roller expansion bearing unit, 4-bolt flange type with a 1-3/16 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-K series. It weighs 6.300 lbs.
