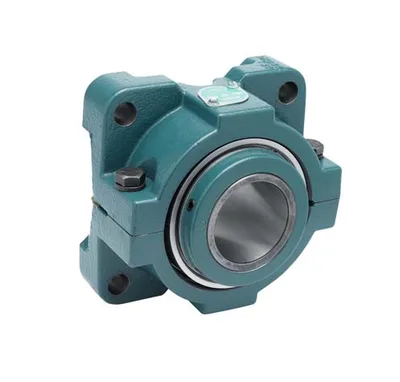

Dodge F4B-EXL-303R

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 3-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

DodgeMFR # F4B-EXL-303RSKU # YLSEXXC3V9OIN1C

Bore Diameter3-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 3-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

Dodge F4B-EXL-303R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Radial Dynamic Load Capacity17750 lbf

Radial Static Load Capacity108600 lbf

Bore Length5 in

SeriesF4B-EXL

Manufacturer Catalog Number077320

UPC_NO782477136405

Dynamic Load Capacity17750 lbf

Housing TypeFour-Bolt Flange

Max Rpm1640 rpm

Static Load Capacity108600 lbf

Description077320 F4B-EXL-303R FLANGE BRG

Maximum Speed1640 rpm

Shaft AttachmentSetscrew

Housing IDType E

Material077320

Long DescriptionThe F4B-EXL-300R is a tapered roller bearing unit, 4-bolt flange type with a 3 in bore diameter, non-expansion (fixed) bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-EXL series. The unit weighs 35.000 lbs.
