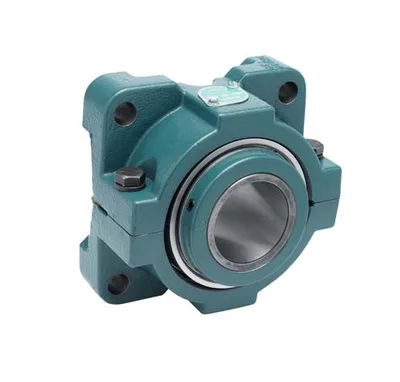

Dodge F4B-EXL-300L-HT

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 3 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

DodgeMFR # F4B-EXL-300L-HTSKU # YLSVWJO7WQMQOC4

Bore Diameter3 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 3 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

Dodge F4B-EXL-300L-HT

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Type Of BearingTapered Roller

Seal TypeLabyrinth Seal

Insert MaterialSteel

Grease TypeMobilGrease HTS #2

LubricationGrease

Radial Dynamic Load Capacity11120 lbf

Radial Static Load Capacity61200 lbf

Bore Length4.5 in

SeriesF4B-EXL

Manufacturer Catalog Number139953

UPC_NO782477411120

Weight35.000 lbs

Dynamic Load Capacity11120 lbf

Housing TypeFour-Bolt Flange

Max Rpm2060 rpm

Static Load Capacity61200 lbf

Description139953 F4B-EXL-300L-HT FLG BRG

Maximum Speed2060 rpm

Shaft AttachmentSetscrew

Suitable For High Temp AppYes

Housing IDType E

Material139953

Long DescriptionThe F4B-EXL-300L-HT is a tapered roller bearing unit, 4-bolt flange type with a 3 in bore diameter, non-expansion (fixed) bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and labyrinth seal in the F4B-EXL series. It is suitable for high temperature applications. The unit weighs 35.000 lbs.
