How can I get a price quote for Dodge F4B-EXL-108RE?

You can request a fast quote for Dodge F4B-EXL-108RE from Yılsa Engineering. Reference part number YLSSI0VT4K1OYNG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-EXL-108RE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-EXL-108RE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-EXL-108RE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

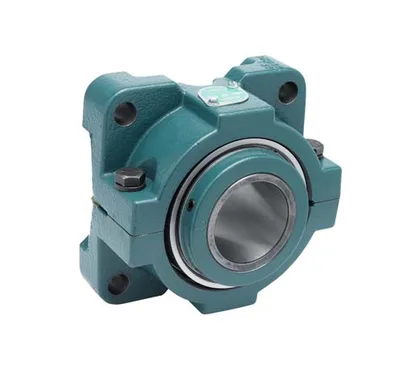

Dodge F4B-EXL-108RE

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-1/2 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

DodgeMFR # F4B-EXL-108RESKU # YLSSI0VT4K1OYNG

Bore Diameter1-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-1/2 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

Dodge F4B-EXL-108RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Radial Dynamic Load Capacity7070 lbf

Radial Static Load Capacity33000 lbf

Bore Length3.38 in

SeriesF4B-EXL

Manufacturer Catalog Number077330

UPC_NO782477135910

Dynamic Load Capacity7070 lbf

Housing TypeFour-Bolt Flange

Max Rpm3320 rpm

Static Load Capacity33000 lbf

Description077330 F4B-EXL-108RE FLANGE BRG

Maximum Speed3320 rpm

Shaft AttachmentSetscrew

Housing IDType E

Material077330

Long DescriptionThe F4B-EXL-107RE is a tapered roller expansion bearing unit, 4-bolt flange type with a 1-7/16 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-EXL series. The unit weighs 8.000 lbs.
