How can I get a price quote for Dodge F4B-E-315R-NL?

You can request a fast quote for Dodge F4B-E-315R-NL from Yılsa Engineering. Reference part number YLSORUR5ETSC4XZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-E-315R-NL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-E-315R-NL genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-E-315R-NL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

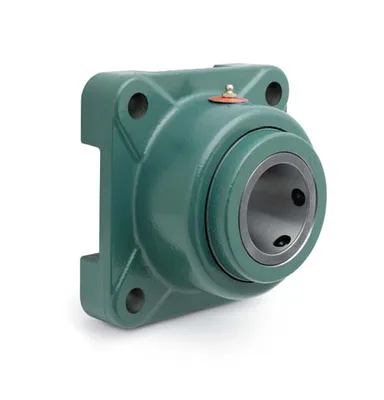

Dodge F4B-E-315R-NL

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 3-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F4B-E-315R-NLSKU # YLSORUR5ETSC4XZ

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 3-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F4B-E-315R-NL

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Radial Dynamic Load Capacity24400 lbf

Radial Static Load Capacity154000 lbf

Bore Length6.25 in

SeriesF4B-E

Manufacturer Catalog Number079337

UPC_NO782476765248

Weight73.740 lbs

Dynamic Load Capacity24400 lbf

Housing TypeFour-Bolt Flange

Max Rpm1530 rpm

Static Load Capacity154000 lbf

Description079337 F4B-E-315R-NL

Maximum Speed1530 rpm

Shaft AttachmentSetscrew

Housing IDType E

Material079337

Long DescriptionThe F4B-E-315R-NL is a tapered roller bearing unit, 4-bolt flange type with a 3-15/16 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-E series. The unit weighs 73.740 lbs.
