How can I get a price quote for Dodge F4B-DI-208RE MOD?

You can request a fast quote for Dodge F4B-DI-208RE MOD from Yılsa Engineering. Reference part number YLSK3JR46IPY7Z2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-DI-208RE MOD in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-DI-208RE MOD genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-DI-208RE MOD?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

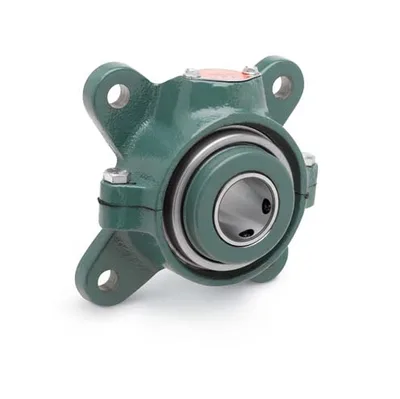

Dodge F4B-DI-208RE MOD

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 2-1/2 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

DodgeMFR # F4B-DI-208RE MODSKU # YLSK3JR46IPY7Z2

Bore Diameter2-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 2-1/2 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing

Dodge F4B-DI-208RE MOD

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeTriple-Lip Contact Seal

Grease TypeMobilGrease XHP222

Radial Dynamic Load Capacity10600 lbf

Radial Static Load Capacity54000 lbf

Bore Length4 in

SeriesF4B-DI

Manufacturer Catalog Number059452

UPC_NO782475427406

Dynamic Load Capacity10600 lbf

Housing TypeFour-Bolt Flange

Max Rpm2420 rpm

Static Load Capacity54000 lbf

Description059452 F4B-DI-208RE MOD FLG BRG

Maximum Speed2420 rpm

Shaft AttachmentSetscrew

Material059452

Long DescriptionThe F4B-DI-208RE MOD is a tapered roller expansion bearing unit, 4-bolt flange type with a 2-1/2 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-DI series. The unit weighs 20.000 lbs.
