How can I get a price quote for Dodge F4B-DI-200-HT?

You can request a fast quote for Dodge F4B-DI-200-HT from Yılsa Engineering. Reference part number YLSBOQK7FZEQTQF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F4B-DI-200-HT in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F4B-DI-200-HT genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F4B-DI-200-HT?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

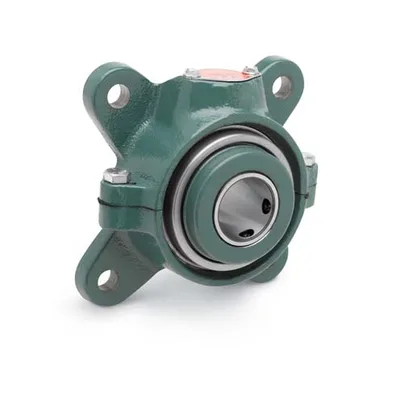

Dodge F4B-DI-200-HT

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 2 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

DodgeMFR # F4B-DI-200-HTSKU # YLSBOQK7FZEQTQF

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 2 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing

Dodge F4B-DI-200-HT

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialDuctile Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease HTS #2

LubricationGrease

Radial Dynamic Load Capacity9300 lbf

Radial Static Load Capacity43000 lbf

Bore Length3.5 in

SeriesF4B-DI

Manufacturer Catalog Number079541

UPC_NO782476799113

Weight15.030 lbs

Dynamic Load Capacity9300 lbf

Housing TypeFour-Bolt Flange

Max Rpm3050 rpm

Static Load Capacity43000 lbf

DescriptionF4B-DI-200-HT BEARINGS

Maximum Speed3050 rpm

Shaft AttachmentSetscrew

Suitable For High Temp AppYes

Material079541

Long DescriptionThe F4B-DI-200-HT is a tapered roller bearing unit, 4-bolt flange type with a 2 in bore diameter, non-expansion (fixed) bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-DI series. It is suitable for high temperature applications. The unit weighs 15.030 lbs.
