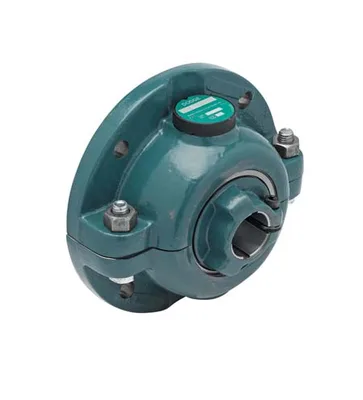

Dodge F4B-C-300E

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 3 in Bore , 4-Bolt Flange Mount, Clamp Collar, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F4B-C-300ESKU # YLSUW453B146COJ

Bore Diameter3 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceClamp Collar

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Round Roller Bearing Unit - Tapered Roller Brg., 3 in Bore , 4-Bolt Flange Mount, Clamp Collar, Expansion Bearing (Floating), Cast Iron Housing

Dodge F4B-C-300E

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceClamp Collar

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSplit

Country of OriginUS

Type Of BearingTapered Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length7.0000 in

SeriesF4B-C

Manufacturer Catalog Number104090

UPC_NO782475055012

Weight140.000 lbs

Housing TypeFour-Bolt Flange

Max Rpm1500 rpm

Description104090 F4BC300E EXP FLG

Maximum Speed1500 rpm

Shaft AttachmentClamp Collar

Material104090

Long DescriptionThe F4B-C-300E is a tapered roller expansion bearing unit, 4-bolt flange type with a 3 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, clamp collar locking device, and labyrinth seal in the F4B-C series. The unit weighs 140.000 lbs.
