How can I get a price quote for Dodge F3R-S2-107R?

You can request a fast quote for Dodge F3R-S2-107R from Yılsa Engineering. Reference part number YLS5X2YJ2X32RL7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge F3R-S2-107R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge F3R-S2-107R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge F3R-S2-107R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

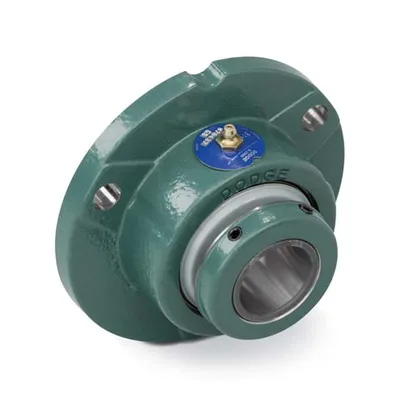

Dodge F3R-S2-107R

Three-Bolt Round Flange Roller Bearing Unit - Spherical Roller Brg., 1-7/16 in Bore , 3-Bolt Round Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # F3R-S2-107RSKU # YLS5X2YJ2X32RL7

Bore Diameter1-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type3-Bolt Round

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Three-Bolt Round Flange Roller Bearing Unit - Spherical Roller Brg., 1-7/16 in Bore , 3-Bolt Round Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge F3R-S2-107R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type3-Bolt Round

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.63 in

SeriesF3R-S2

Manufacturer Catalog Number070437

UPC_NO782475306596

Dynamic Load Capacity20800 lbf

Housing Type3-Bolt Round

Max Rpm2900 rpm

Static Load Capacity21000 lbf

Description070437 F3R-S2-107R

Shaft AttachmentSetscrew

Housing DimensionsS-2000

Material070437

Sensor ReadyYes

Long DescriptionThe F3R-S2-107R is a spherical roller bearing unit, 3-bolt round flange type with a 1-7/16 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 3-bolt round flange mounting, set screw locking device, and Trident triple-lip contact seal in the F3R-S2 series. It weighs 5.990 lbs.
