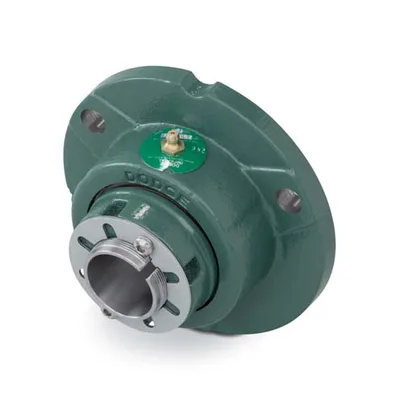

Photo may not represent actual item. Refer to name and product specs for all details.

Dodge F3R-IP-104RE

Three-Bolt Round Flange Roller Bearing Unit - Spherical Roller Brg., 1-1/4 in Bore , 3-Bolt Round Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # F3R-IP-104RESKU # YLSK9NYD3S40HWM

Bore Diameter1-1/4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type3-Bolt Round

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Three-Bolt Round Flange Roller Bearing Unit - Spherical Roller Brg., 1-1/4 in Bore , 3-Bolt Round Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge F3R-IP-104RE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-1/4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type3-Bolt Round

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.63 in

SeriesF3R-IP

Manufacturer Catalog Number069632

UPC_NO782475309108

Weight5.400 lbs

Dynamic Load Capacity20800 lbf

Housing Type3-Bolt Round

Max Rpm3975 rpm

Static Load Capacity21000 lbf

Description069632 F3R-IP-104RE

Shaft AttachmentPush-Pull Adapter

Housing DimensionsS-2000

Material069632

Sensor ReadyYes

Long DescriptionThe F3R-IP-104RE is a spherical roller expansion bearing unit, 3-bolt round flange type with a 1-1/4 in bore diameter, floating bearing. It features a cast iron housing with a 3-bolt round flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F3R-IP series. The unit weighs 5.400 lbs.
