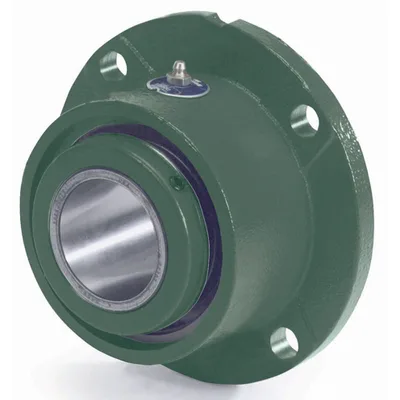

Dodge EFC-S2-407LE

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # EFC-S2-407LESKU # YLSLE4W09G60S5C

Bore Diameter4-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter11.7500 in

Locking DeviceSet Screw

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing

Dodge EFC-S2-407LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter4-7/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter11.7500 in

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Pilot Diameter10.2500 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length6.5300 in

SeriesEFC-S2

Manufacturer Catalog Number071527

UPC_NO782476187521

Weight97.000 lbs

Dynamic Load Capacity104000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1200 rpm

Static Load Capacity132000 lbf

Description071527 EFC-S2-407LE BRG

Shaft AttachmentSetscrew

Housing DimensionsType E

Material071527

Sensor ReadyYes

Long DescriptionThe EFC-S2-407LE is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 4-7/16 in bore diameter, floating bearing and 11.7500 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and labyrinth seal in the EFC-S2 series. The unit weighs 97.000 lbs.
