How can I get a price quote for Dodge EFC-IP-500LE?

You can request a fast quote for Dodge EFC-IP-500LE from Yılsa Engineering. Reference part number YLS6999ZBKNK3GH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge EFC-IP-500LE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge EFC-IP-500LE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge EFC-IP-500LE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

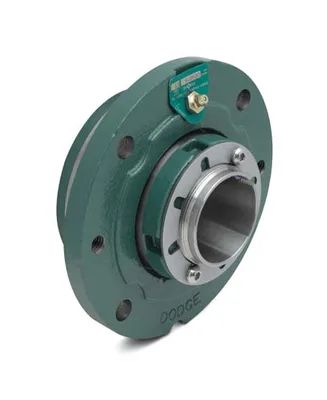

Dodge EFC-IP-500LE

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 5 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # EFC-IP-500LESKU # YLS6999ZBKNK3GH

Bore Diameter5 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter12.7500 in

Locking DeviceAdapter Mounted

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 5 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge EFC-IP-500LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter5 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Piloted Flange

Housing MaterialCast Iron

Bolt Circle Diameter12.7500 in

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Pilot Diameter11.0000 in

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length5.9800 in

SeriesEFC-IP

Manufacturer Catalog Number071287

Manufacturer Upc Number782476192808

UPC_NO782476192808

Weight128.000 lbs

Dynamic Load Capacity146000 lbf

Housing Type4-Bolt Piloted Flange

Max Rpm1800 rpm

Static Load Capacity196000 lbf

Description071287 EFC-IP-500LE

Shaft AttachmentPush-Pull Adapter

Housing DimensionsType E

Material071287

Sensor ReadyYes

Long DescriptionThe EFC-IP-500LE is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 5 in bore diameter, floating bearing and 12.7500 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and labyrinth seal in the EFC-IP series. The unit weighs 128.000 lbs.
