How can I get a price quote for Dodge EF4B-S2-315LE?

You can request a fast quote for Dodge EF4B-S2-315LE from Yılsa Engineering. Reference part number YLSXZ4J49P72XAG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge EF4B-S2-315LE in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge EF4B-S2-315LE genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge EF4B-S2-315LE?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

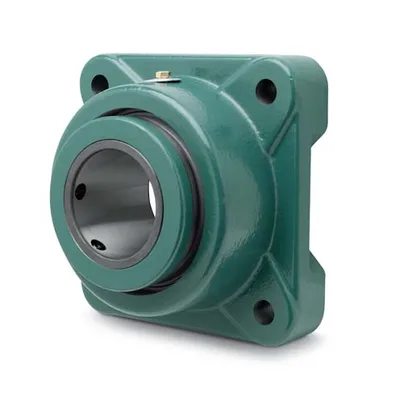

Dodge EF4B-S2-315LE

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # EF4B-S2-315LESKU # YLSXZ4J49P72XAG

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing

Dodge EF4B-S2-315LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceSet Screw

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length5.7 in

SeriesEF4B-S2

Manufacturer Catalog Number071519

UPC_NO782476187446

Weight73.740 lbs

Dynamic Load Capacity83000 lbf

Housing Type4-Bolt Flange

Max Rpm1320 rpm

Static Load Capacity104000 lbf

Description071519 EF4B-S2-315LE BRG

Max Bolt Hole Spacing7.7500 in

Min Bolt Hole Spacing7.7500 in

Shaft AttachmentSetscrew

Insert Outer Diameter180 mm

Housing DimensionsType E

Material071519

Sensor ReadyYes

Long DescriptionThe EF4B-S2-315LE is a spherical roller expansion bearing unit, 4-bolt flange type with a 3-15/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and labyrinth seal in the EF4B-S2 series. The unit weighs 73.740 lbs.
