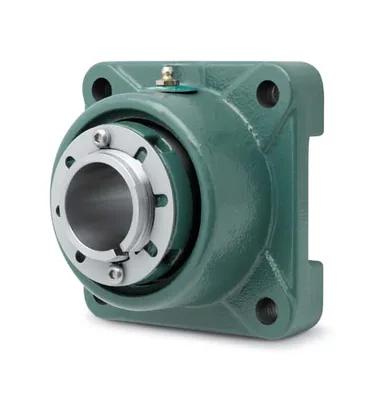

Dodge EF4B-IP-315LE

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # EF4B-IP-315LESKU # YLSPHL347ZKCQ3A

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge EF4B-IP-315LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter3-15/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length5.7 in

SeriesEF4B-IP

Manufacturer Catalog Number071385

Manufacturer Upc Number782476190583

UPC_NO782476190583

Weight73.740 lbs

Dynamic Load Capacity83000 lbf

Housing Type4-Bolt Flange

Max Rpm2200 rpm

Static Load Capacity104000 lbf

Description071385 EF4B-IP-315LE

Max Bolt Hole Spacing7.7500 in

Min Bolt Hole Spacing7.7500 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter180 mm

Housing DimensionsType E

Material071385

Sensor ReadyYes

Long DescriptionThe EF4B-IP-315LE is a spherical roller expansion bearing unit, 4-bolt flange type with a 3-15/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and labyrinth seal in the EF4B-IP series. The unit weighs 73.740 lbs.
