How can I get a price quote for Dodge EF4B-IP-208R?

You can request a fast quote for Dodge EF4B-IP-208R from Yılsa Engineering. Reference part number YLSRUG225MU4DWX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge EF4B-IP-208R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge EF4B-IP-208R genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge EF4B-IP-208R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

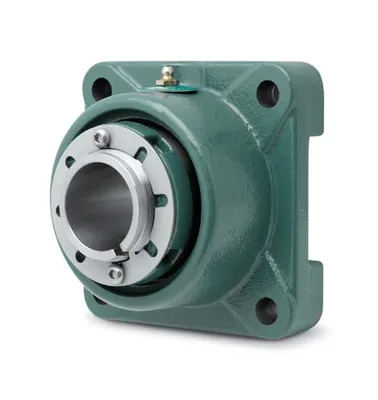

Dodge EF4B-IP-208R

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-1/2 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # EF4B-IP-208RSKU # YLSRUG225MU4DWX

Bore Diameter2-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-1/2 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge EF4B-IP-208R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-1/2 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.42 in

SeriesEF4B-IP

Manufacturer Catalog Number071300

Manufacturer Upc Number782476189181

UPC_NO782476189181

Weight19.500 lbs

Dynamic Load Capacity39000 lbf

Housing Type4-Bolt Flange

Max Rpm2400 rpm

Static Load Capacity47500 lbf

Description071300 EF4B-IP-208R

Max Bolt Hole Spacing5.3700 in

Min Bolt Hole Spacing5.3700 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter120 mm

Housing DimensionsType E

Material071300

Sensor ReadyYes

Long DescriptionThe EF4B-IP-208R is a spherical roller bearing unit, 4-bolt flange type with a 2-1/2 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the EF4B-IP series. The unit weighs 19.500 lbs.
