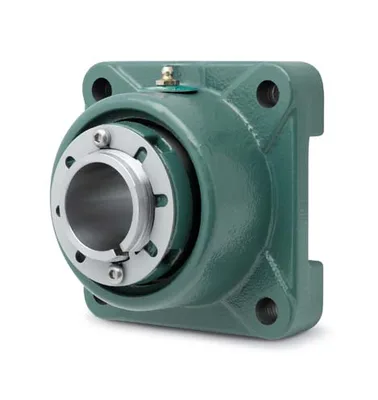

Dodge EF4B-IP-204LE

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-1/4 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

DodgeMFR # EF4B-IP-204LESKU # YLSZC6GMFTRE3JK

Bore Diameter2-1/4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-1/4 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing

Dodge EF4B-IP-204LE

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-1/4 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeExpansion Bearing (Floating)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.42 in

SeriesEF4B-IP

Manufacturer Catalog Number071374

Manufacturer Upc Number782476189914

UPC_NO782476189914

Weight20.620 lbs

Dynamic Load Capacity27000 lbf

Housing Type4-Bolt Flange

Max Rpm3800 rpm

Static Load Capacity29000 lbf

Description071374 EF4B-IP-204LE

Max Bolt Hole Spacing5.3700 in

Min Bolt Hole Spacing5.3700 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter120 mm

Housing DimensionsType E

Material071374

Sensor ReadyYes

Long DescriptionThe EF4B-IP-204LE is a spherical roller expansion bearing unit, 4-bolt flange type with a 2-1/4 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and labyrinth seal in the EF4B-IP series.
