How can I get a price quote for Dodge EF4B-IP-203L?

You can request a fast quote for Dodge EF4B-IP-203L from Yılsa Engineering. Reference part number YLSECL14BQS7A90. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Dodge EF4B-IP-203L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Dodge EF4B-IP-203L genuine and new?

Yes. This Dodge product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Dodge EF4B-IP-203L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

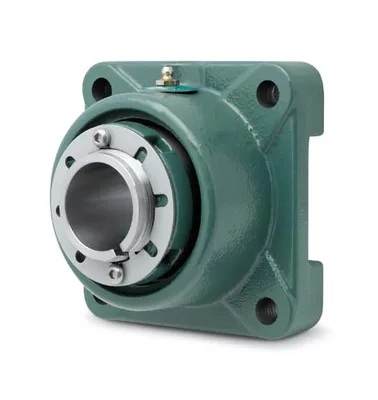

Dodge EF4B-IP-203L

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # EF4B-IP-203LSKU # YLSECL14BQS7A90

Bore Diameter2-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge EF4B-IP-203L

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter2-3/16 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeLabyrinth

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length3.03 in

SeriesEF4B-IP

Manufacturer Catalog Number071347

Manufacturer Upc Number782476189655

UPC_NO782476189655

Weight15.350 lbs

Dynamic Load Capacity27000 lbf

Housing Type4-Bolt Flange

Max Rpm4500 rpm

Static Load Capacity29000 lbf

Description071347 EF4B-IP-203L

Max Bolt Hole Spacing4.8800 in

Min Bolt Hole Spacing4.8800 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter100 mm

Housing DimensionsType E

Material071347

Sensor ReadyYes

Long DescriptionThe EF4B-IP-203L is a spherical roller bearing unit, 4-bolt flange type with a 2-3/16 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and labyrinth seal in the EF4B-IP series. The unit weighs 15.350 lbs.
