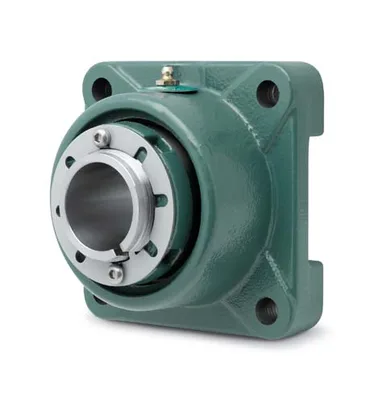

Dodge EF4B-IP-110R

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-5/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

DodgeMFR # EF4B-IP-110RSKU # YLS7PM34BXYXYXO

Bore Diameter1-5/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Have questions?Chat on WhatsApp

About This Product

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 1-5/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing

Dodge EF4B-IP-110R

Genuine, certified Dodge product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Bore Diameter1-5/8 in

Product TypeFlange-Mount Roller Bearing Units

Mounting Type4-Bolt Flange

Housing MaterialCast Iron

Locking DeviceAdapter Mounted

Expansion TypeNon-Expansion Bearing (Fixed)

Housing ConstructionSolid

Country of OriginUS

Type Of BearingSpherical Roller

Seal TypeTriple-Lip Contact Seal

Insert MaterialSteel

Grease TypeMobilGrease XHP222

LubricationGrease

Bore Length2.81 in

SeriesEF4B-IP

Manufacturer Catalog Number071291

Manufacturer Upc Number782476189099

UPC_NO782476189099

Weight10.500 lbs

Dynamic Load Capacity20800 lbf

Housing Type4-Bolt Flange

Max Rpm3725 rpm

Static Load Capacity22000 lbf

Description071291 EF4B-IP-110R

Max Bolt Hole Spacing4.1300 in

Min Bolt Hole Spacing4.1300 in

Shaft AttachmentPush-Pull Adapter

Insert Outer Diameter85 mm

Housing DimensionsType E

Material071291

Sensor ReadyYes

Long DescriptionThe EF4B-IP-110R is a spherical roller bearing unit, 4-bolt flange type with a 1-5/8 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the EF4B-IP series. The unit weighs 10.500 lbs.
