Bosch Rexroth R349945300
Clevis mount on the belt side drive
Outer diameter D [mm]40.0
Weight [kg]0.26
Note: Maximum dynamic loadFmax EMC
Surface finishingforged
Pitch T guide rail [mm]4
Material of electromechanical cylindersAluminum
About This Product
Bosch Rexroth R349945300 (Clevis mount on the belt side drive) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth R349945300 — price, stock availability and technical specifications.
Bosch Rexroth R349945300
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Fastening elements for electromechanical cylindersClevis mount
Outer diameter D [mm]40.0
Weight [kg]0.26
Note: Maximum dynamic loadFmax EMC
Surface finishingforged
Pitch T guide rail [mm]4
Material of electromechanical cylindersAluminum

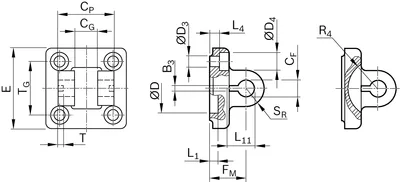

Dimension B3 [mm]4.3
Dimension B3 tolerance [mm]±0.2
Dimension CF F7 [mm]16
Dimension CG D10 [mm]21
Dimension CP d12 [mm]45
Dimension D [mm]40
Dimension D3 [mm]9
Dimension D4 [mm]15
Dimension E [mm]67
Dimension FM [mm]27
Dimension FM tolerance [mm]±0.2
Dimension L1 [mm]4.5
Dimension L1 tolerance [mm]±0.5
Dimension L11 [mm]23
Dimension L11 tolerance [mm]-0.5
Dimension L4 [mm]6.5
Dimension L4 tolerance [mm]±0.5
Dimension R4 [mm]22
Dimension SR [mm]15
Dimension T [mm]4
Dimension T tolerance [mm]±0.2
Dimension Tg [mm]46.5
Dimension TG [mm]46.5
Dimension TG tolerance [mm]±0.2
Dimension hex socket head cap screws DIN 912M8x20 mm
Dimension hex socket head cap screw DIN 912 thread diameterM8
Hex socket head cap screw DIN 912 screw Dimension, length [mm]20
