Bosch Rexroth R190213200

The cam roller runner block is characterized by the following product features: Size 32 Format SNS: Width = slimline, length = normal, height = standard Runner block body made of aluminum Standard load carrying capacity Accuracy class E: Economic Without preservation Without initial lubrication Attachment element, left (front reference edge): front lube unit with low-friction seal Attachment element, right (front reference edge): Front lube unit with low-friction seal Lube nipple included Standard version Overall length of the runner block = 119 Interchangeable element

Bosch RexrothMFR # R190213200SKU # YLSQ65DEZYTS1JE

VersionCam roller guide

Nominal size [mm]32

Preload classC0 - Without preload (clearance)

LubricationWithout lubrication (dry)

Width of runner block [mm]86.0

Length of runner block [mm]112.0

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R190213200

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionCam roller guide

Nominal size [mm]32

Preload classC0 - Without preload (clearance)

LubricationWithout lubrication (dry)

Width of runner block [mm]86.0

Length of runner block [mm]112.0

Height of runner block [mm]13.0

Height runner block with guide rail [mm]35.5

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]10.0

Note: Maximum permissible speed vmaxFor average load.

Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]11

Maximum permissible dynamic torsional moment about the y-axis My max [Nm]26

Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]30

Maximum dynamic load in y-direction Fy max [N]1000

Note: Maximum dynamic load in y-direction Fy maxObserve the permissible lateral force of the guide rail (see instruction for mounting).

Operating temperature (min. … max.)-20 °C ... +80 °C

Maximum static load due to a resulting force in the y-direction F0y max [N]1000

Note: Maximum static load due to a resulting force in the y-direction F0y maxObserve the permissible lateral force of the guide rail (see notes for mounting).

Weight [kg]0.57

Maximum operating temperature [°C]+80

Maximum dynamic load in z-direction Fz max [N]850

Minimum operating temperature [°C]-20

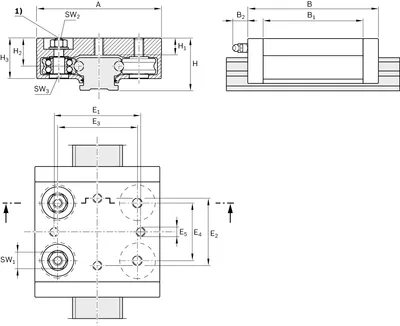

Dimension A [mm]86

Dimension B [mm]112

Dimension B1 [mm]92

Dimension B2 [mm]7

Dimension E1 [mm]59

Dimension E2 [mm]70

Dimension E3 [mm]54

Dimension E4 [mm]60
