How can I get a price quote for Bosch Rexroth R187366372?

You can request a fast quote for Bosch Rexroth R187366372 from Yılsa Engineering. Reference part number YLS3SHXBUOEFMDB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R187366372 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R187366372 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R187366372?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

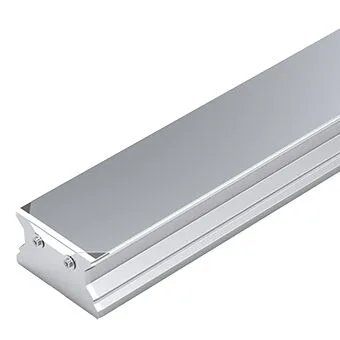

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R187366372

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features: Size 65 Format BNS: Width = wide, length = normal, height = standard Guide rail made of carbon steel CS, matte-silver, hard chrome plated Fastener MA: Bolting from above Cover AB: Cover strip and protective caps Accuracy class high Number of partial sections: two-piece Rail in standard version

Bosch RexrothMFR # R187366372SKU # YLS3SHXBUOEFMDB

VersionRoller rail systems

Nominal size [mm]65/100

FormatBNS - wide guide rail

Material (profiled rail systems)Hard chrome plated

Accuracy classH - Highly accurate

Guide rail mountingFor bolting from above

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R187366372

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]65/100

FormatBNS - wide guide rail

Material (profiled rail systems)Hard chrome plated

Accuracy classH - Highly accurate

Guide rail mountingFor bolting from above

Guide rail coverWith cover strip

Max. length Lmax [mm]3971.0

Note: LmaxRoller guide rails R1873 .6 .. Resist CR only up to 3971 mm long

Number of holes nB53

Number of sectionsMulti-part

Mass m (kg/m) [kg/m]34.7

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for short time. For operation at lower minus temperatures, please consult us.

Weight [kg]0

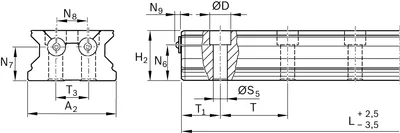

Recommended rail lengthL = nB • T ‒ 4 mm

Pitch T guide rail [mm]75

Dimension A2 [mm]100

Dimension D [mm]24

Dimension diameter S520

Dimension H2 with cover strip [mm]58.15

Note: H2 with cover stripWith cover strip 0.3 mm

Dimension N6 [mm]39

Dimension N6 tolerance [mm]±0.5

Dimension N7 [mm]40

Dimension N8 [mm]37

Dimension N9 [mm]4.8

Dimension T [mm]75

Dimension T1 min [mm]35.5

Dimension T1 s [mm]38

Note: Dimensions T1 minWhen undercutting T1 min, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!

Note: Dimensions T1 sPreferred dimension T1S with tolerance +1/-1.5

Height of guide rail H2 with cover strip [mm]58.15
