How can I get a price quote for Bosch Rexroth R186333360?

You can request a fast quote for Bosch Rexroth R186333360 from Yılsa Engineering. Reference part number YLS4YNKYHU6AIPC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R186333360 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R186333360 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R186333360?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

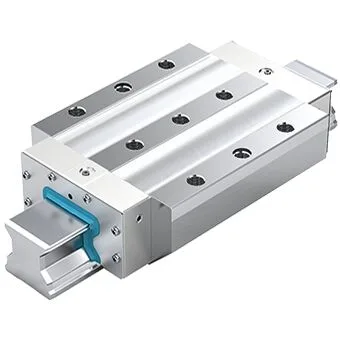

Bosch Rexroth R186333360

The roller runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features: Size 125 Format FLS: Width = flange, length = long, height = standard Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated Preload class C3: High preload Accuracy class H: High Without roller chain Preserved Without initial lubrication Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Straight lube connection loosely attached. Runner block body in standard version Overall length of the runner block = 491.5 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Bosch RexrothMFR # R186333360SKU # YLS4YNKYHU6AIPC

VersionRoller rail systems

Nominal size [mm]125

FormatFLS - flange, long, standard height

ModelHeavy-duty roller runner block

Material (profiled rail systems)Hard chrome plated

Preload classC3 - High preload

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R186333360

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]125

FormatFLS - flange, long, standard height

ModelHeavy-duty roller runner block

Material (profiled rail systems)Hard chrome plated

Preload classC3 - High preload

Accuracy classH - Highly accurate

SealSS - Standard seal

LubricationPreserved

Width of runner block [mm]320.0

Length of runner block [mm]476.0

Height of runner block [mm]135.5

Height runner block with guide rail [mm]160.0

Maximum acceleration rate amax [m/s²]150.0

Note: Max. acceleration amaxRequirement: There must be preload, even during operation under load.

Maximum permissible linear speed vmax [m/s]2.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for a short time. For operation at lower minus temperatures, please consult us.

Friction coefficient μ0.0004 ... 0.001

Note: Friction coefficient μWithout friction of seal

Weight [kg]89.8

Dynamic load capacity C50 [N]1250000.0

Note: dynamic load capacity C50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic load capacity C100 [N]1020000.0

Note: dynamic load capacity C100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static load capacity C0 [N]1941900.0

Dynamic torsional moment load capacity Mt50 [Nm]92700.0

Note: Dynamic torsional moment load capacity Mt50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic torsional moment load capacity Mt100 [Nm]75350.0

Note: Dynamic torsional moment load capacity Mt100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]139820

Dynamic longitudinal moment load capacity ML50 [Nm]72300.0

Note: Dynamic longitudinal moment load capacity ML50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic longitudinal moment load capacity ML100 [Nm]58820.0

Note: Dynamic longitudinal moment load capacity ML100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]109150

Note: Friction force FRGuideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication.

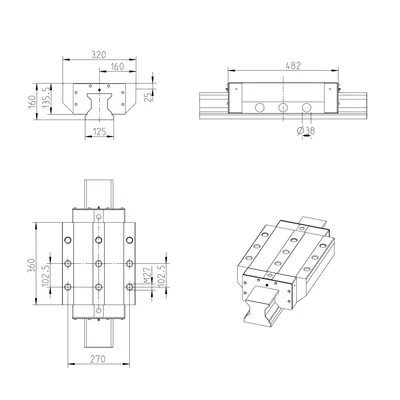

Pitch T guide rail [mm]120

Dimension A [mm]320

Dimension A1 [mm]160

Dimension A2 [mm]125

Dimension A3 [mm]97.5

Dimension B [mm]476

Dimension B1 [mm]360

Dimension B2 [mm]482

Dimension B3 [mm]491.5

Dimension B4 [mm]150

Dimension diameter S533

Dimension E1 [mm]270

Dimension E2 [mm]205

Dimension E8 [mm]80

Dimension E9 [mm]12

Dimension H [mm]160.0

Dimension H1 [mm]135.5

Dimension H2 with cover strip [mm]115.3

Dimension K1 [mm]102.5

Dimension K2 [mm]102.5

Dimension N1 [mm]45

Dimension N2 [mm]29

Dimension N5 [mm]29

Dimension N6 [mm]74.5

Dimension N6 tolerance [mm]±0.5

Dimension N7 [mm]92

Dimension S1 with thread diameter [mm]25

Dimension S2M27

Dimension T1 min [mm]40

Dimension V1 [mm]25

Note: Dimension TDimension T = Rail separation of the roller guide rail
