How can I get a price quote for Bosch Rexroth R183536362?

You can request a fast quote for Bosch Rexroth R183536362 from Yılsa Engineering. Reference part number YLSVU33XOHBJ3MY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R183536362 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R183536362 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R183536362?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R183536362

The roller guide rail is highly precise and characterized by the following product features: Size 125 Format SNS: Width = slimline, length = normal, height = standard Guide rail made of carbon steel CS Fastener MA: Bolting from above Cover AB: Cover strip and protective caps Accuracy class high Number of partial sections: 2 Rail in standard version

Bosch RexrothMFR # R183536362SKU # YLSVU33XOHBJ3MY

VersionRoller rail systems

Nominal size [mm]125

FormatSNS - Standard guide rail

Material (profiled rail systems)Carbon steel

Accuracy classH - Highly accurate

Guide rail mountingFor bolting from above

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R183536362

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]125

FormatSNS - Standard guide rail

Material (profiled rail systems)Carbon steel

Accuracy classH - Highly accurate

Guide rail mountingFor bolting from above

Guide rail coverWith cover strip

Max. length Lmax [mm]2760.0

Minimum length Lmin [mm]320.0

Number of holes nB22

Number of sections2-piece

Mass m (kg/m) [kg/m]75.6

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for short time. For operation at lower minus temperatures, please consult us.

Weight [kg]0

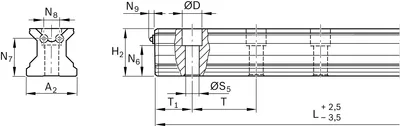

Recommended rail lengthL = nB • T ‒ 7 mm

Pitch T guide rail [mm]120

Dimension A2 [mm]125

Dimension D [mm]49

Dimension diameter S533

Dimension H2 with cover strip [mm]115.3

Note: H2 with cover stripWith cover strip 0.3 mm

Dimension N6 [mm]74.5

Dimension N6 tolerance [mm]±0.5

Dimension N7 [mm]91

Dimension N8 [mm]38

Dimension N9 [mm]4.8

Dimension T [mm]120

Dimension T1 max [mm]80

Dimension T1 min [mm]40

Dimension T1 s [mm]56.5

Note: Dimensions T1 minWhen undercutting T1 min, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!

Note: Dimensions T1 sPreferred dimension T1S with tolerance +1/-1.5

Height of guide rail H2 with cover strip [mm]115.3

Documents & CAD

For this product 2

DatasheetProfiled rail systemsPDF·13.8 MB·English

DatasheetRoller rail systems High Precision RSHPPDF·17.6 MB·English
