Bosch Rexroth R182423216

The roller runner block is highly precise and characterized by the following product features: Size 25 Format SLH: Width = slimline, length = long, height = high Runner block body made of unalloyed steel CS Preload class C3: High preload Accuracy class P: Precision Without roller chain Preserved Without initial lubrication Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) No lube connection attached. Runner block body in standard version Overall length of the runner block = 115.0 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Bosch RexrothMFR # R182423216SKU # YLSX8MMXMU0X9OQ

VersionRoller rail systems

Nominal size [mm]25

FormatSLH - slimline, long, high

ModelHigh-precision roller runner block

Material (profiled rail systems)Carbon steel

Preload classC3 - High preload

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R182423216

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]25

FormatSLH - slimline, long, high

ModelHigh-precision roller runner block

Material (profiled rail systems)Carbon steel

Preload classC3 - High preload

Accuracy classP - Precise

SealSS - Standard seal

LubricationPreserved

Width of runner block [mm]48.0

Length of runner block [mm]109.0

Height of runner block [mm]34.0

Height runner block with guide rail [mm]40.0

Maximum acceleration rate amax [m/s²]150.0

Note: Max. acceleration amaxRequirement: There must be preload, even during operation under load.

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 4 m/s possible. Service life is limited by heightened stress to plastic parts.

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for a short time. For operation at lower minus temperatures, please consult us.

Friction coefficient μ0.0004 ... 0.001

Note: Friction coefficient μWithout friction of seal

Weight [kg]0.9

Dynamic load capacity C50 [N]41000.0

Note: dynamic load capacity C50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic load capacity C100 [N]33300.0

Note: dynamic load capacity C100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static load capacity C0 [N]70000.0

Dynamic torsional moment load capacity Mt50 [Nm]530.0

Note: Dynamic torsional moment load capacity Mt50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic torsional moment load capacity Mt100 [Nm]432.0

Note: Dynamic torsional moment load capacity Mt100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]908

Dynamic longitudinal moment load capacity ML50 [Nm]520.0

Note: Dynamic longitudinal moment load capacity ML50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic longitudinal moment load capacity ML100 [Nm]420.0

Note: Dynamic longitudinal moment load capacity ML100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]900

Note: Friction force FRGuideline value for frictional drags of the complete, sealed and lubricated roller runner block.

Product informationOil and grease lubrication from above

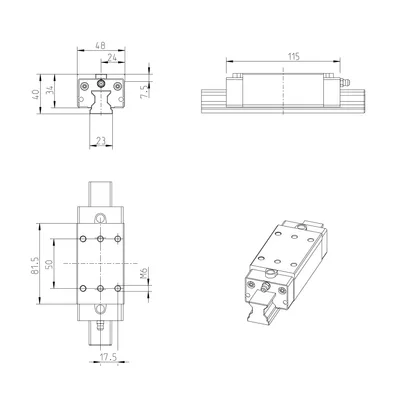

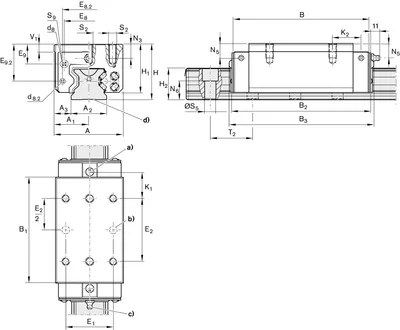

Dimension A [mm]48

Dimension A1 [mm]24

Dimension A2 [mm]23

Dimension A3 [mm]12.5

Dimension B [mm]109

Dimension B1 [mm]81.5

Dimension B2 [mm]111

Dimension B3 [mm]115

Dimension diameter S57

Dimension E1 [mm]35

Dimension E2 [mm]50

Dimension E8 [mm]33.4

Dimension E9 [mm]12.4

Dimension H [mm]40.0

Dimension H1 [mm]34

Dimension H2 with cover strip [mm]23.6

Dimension H2 without cover strip [mm]23.4

Dimension K1 [mm]20.6

Dimension N3 [mm]9

Dimension N5 [mm]9.5

Dimension N6 [mm]14.3

Dimension N6 tolerance [mm]±0.5

Dimension S2M6

Dimension S9M3

Dimension S9 thread diameterM3

Dimension T2 [mm]30

Dimension V1 [mm]7.5

Documents & CAD

For this product 2

DatasheetProfiled rail systemsPDF·13.8 MB·English

DatasheetRoller rail systems High Precision RSHPPDF·17.6 MB·English
