How can I get a price quote for Bosch Rexroth R18226232X?

You can request a fast quote for Bosch Rexroth R18226232X from Yılsa Engineering. Reference part number YLSH9WKFVC8BK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R18226232X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R18226232X genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R18226232X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

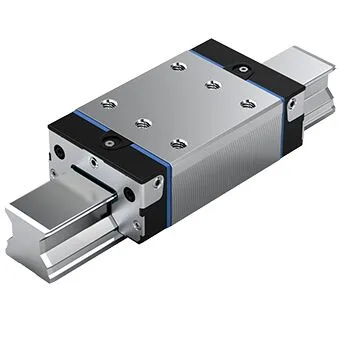

Bosch Rexroth R18226232X

The roller runner block is highly precise and characterized by the following product features: Size 65 Format SNS: Width = slimline, length = normal, height = standard Runner block body made of unalloyed steel CS Preload class C2: Medium preload Accuracy class H: High Without roller chain Preserved Without initial lubrication Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Straight lube connection loosely attached. Runner block body in standard version Overall length of the runner block = 207.3 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Bosch RexrothMFR # R18226232XSKU # YLSH9WKFVC8BK

VersionRoller rail systems

Nominal size [mm]65

FormatSNS - slimline, normal, standard height

ModelHigh-precision roller runner block

Material (profiled rail systems)Carbon steel

Preload classC2 - Medium preload

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R18226232X

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]65

FormatSNS - slimline, normal, standard height

ModelHigh-precision roller runner block

Material (profiled rail systems)Carbon steel

Preload classC2 - Medium preload

Accuracy classH - Highly accurate

SealDS - Double-lip seal

LubricationPreserved

Width of runner block [mm]126.0

Length of runner block [mm]207.3

Height of runner block [mm]76.0

Height runner block with guide rail [mm]90.0

Maximum acceleration rate amax [m/s²]150.0

Note: Max. acceleration amaxRequirement: There must be preload, even during operation under load.

Maximum permissible linear speed vmax [m/s]4.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for a short time. For operation at lower minus temperatures, please consult us.

Friction coefficient μ0.0004 ... 0.001

Note: Friction coefficient μWithout friction of seal

Weight [kg]9.16

Dynamic load capacity C50 [N]292000.0

Note: dynamic load capacity C50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic load capacity C100 [N]237200.0

Note: dynamic load capacity C100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static load capacity C0 [N]456300.0

Dynamic torsional moment load capacity Mt50 [Nm]10400.0

Note: Dynamic torsional moment load capacity Mt50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic torsional moment load capacity Mt100 [Nm]8430.0

Note: Dynamic torsional moment load capacity Mt100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]16210

Dynamic longitudinal moment load capacity ML50 [Nm]6470.0

Note: Dynamic longitudinal moment load capacity ML50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic longitudinal moment load capacity ML100 [Nm]5260.0

Note: Dynamic longitudinal moment load capacity ML100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]10120

Note: Friction force FRGuideline value for frictional drags of the complete, sealed and lubricated roller runner block.

Pitch T guide rail [mm]75

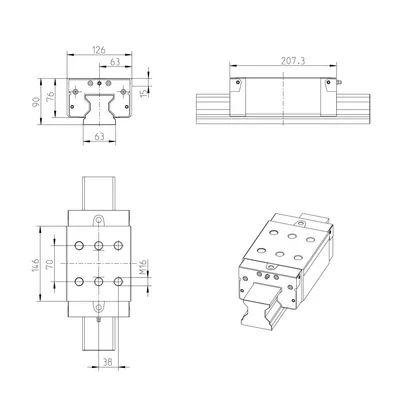

Dimension A [mm]126

Dimension A1 [mm]63

Dimension A2 [mm]63

Dimension A3 [mm]31.5

Dimension B [mm]207.3

Dimension B1 [mm]146

Dimension diameter S518

Dimension E1 [mm]76

Dimension E2 [mm]70

Dimension E8 [mm]35

Dimension E8.1 [mm]93

Dimension E9 [mm]9.3

Dimension E9.1 [mm]26

Dimension H [mm]90.0

Dimension H1 [mm]76

Dimension H2 with cover strip [mm]58.15

Dimension H2 without cover strip [mm]57.85

Dimension K1 [mm]50

Dimension K2 [mm]53

Dimension N3 [mm]21

Dimension N5 [mm]9.3

Dimension N6 [mm]36.5

Dimension N6 tolerance [mm]±0.5

Dimension S2M16

Dimension S9M4

Dimension S9 thread diameterM4

Dimension T1 min [mm]21

Dimension V1 [mm]15

Note: Dimension TDimension T = Rail separation of the roller guide rail
