How can I get a price quote for Bosch Rexroth R180563961?

You can request a fast quote for Bosch Rexroth R180563961 from Yılsa Engineering. Reference part number YLS2KMWPQQNKU7A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R180563961 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R180563961 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R180563961?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R180563961

The roller guide rail is highly precise and characterized by the following product features: Size 65 Format SNS: Width = slimline, length = normal, height = standard Guide rail made of carbon steel CS Fastener MA: Bolting from above Cover BS: Cover strip and strip clamp Accuracy class ultra precision Number of partial sections: one-piece Rail in standard version

Bosch RexrothMFR # R180563961SKU # YLS2KMWPQQNKU7A

VersionRoller rail systems

Nominal size [mm]65

FormatSNS - Standard guide rail

Material (profiled rail systems)Carbon steel

Accuracy classUP - Ultra precise

Guide rail mountingFor bolting from above

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R180563961

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]65

FormatSNS - Standard guide rail

Material (profiled rail systems)Carbon steel

Accuracy classUP - Ultra precise

Guide rail mountingFor bolting from above

Guide rail coverWith cover strip and strip clamps

Max. length Lmax [mm]5921.0

Note: LmaxAvailable on request

Minimum length Lmin [mm]192.0

Number of holes nB53

Number of sections1-piece

Mass m (kg/m) [kg/m]17.4

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for short time. For operation at lower minus temperatures, please consult us.

Weight [kg]0

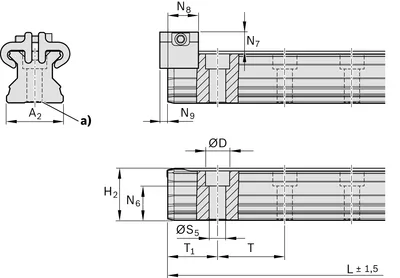

Recommended rail lengthL = nB • T ‒ 4 mm

Product informationAvailable on request.

Pitch T guide rail [mm]75

Dimension A2 [mm]63

Dimension D [mm]26

Dimension diameter S518

Dimension H2 with cover strip [mm]58.15

Note: H2 with cover stripWith cover strip 0.3 mm

Dimension N6 [mm]36.5

Dimension N6 tolerance [mm]±0.5

Dimension N8 [mm]17

Dimension N9 [mm]3.2

Dimension T [mm]75

Dimension T1 max [mm]55

Dimension T1 min [mm]21

Dimension T1 s [mm]35.5

Note: Dimensions T1 sPreferred dimension T1S with tolerances ± 0.75

Height of guide rail H2 with cover strip [mm]58.15
