Bosch Rexroth R167550431
The ball guide rail is highly precise and characterized by the following product features:<br>Size 20<br>Format BNS: Width = wide, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover AK: Plastic caps<br>Accuracy class standard<br>Number of partial sections: one-piece<br>Rail in standard version
VersionBall rail system
Nominal size [mm]20/40
FormatBNS - wide guide rail
Material (profiled rail systems)Carbon steel
Accuracy classN - Normal
Guide rail mountingFor bolting from above
About This Product
The ball guide rail is highly precise and characterized by the following product features:<br>Size 20<br>Format BNS: Width = wide, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover AK: Plastic caps<br>Accuracy class standard<br>Number of partial sections: one-piece<br>Rail in standard version
Bosch Rexroth R167550431
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
VersionBall rail system
Nominal size [mm]20/40
FormatBNS - wide guide rail
Material (profiled rail systems)Carbon steel
Accuracy classN - Normal
Guide rail mountingFor bolting from above
Guide rail coverPlastic caps
Max. length Lmax [mm]3836.0
Minimum length Lmin [mm]80.0
Number of holes nB64
Number of sections1-piece
Mass m (kg/m) [kg/m]5.3
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: Permissible ambient temperature (min. ... max.)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]2.2
Recommended rail lengthL = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Note: SizeAttention: Ball guide rail cannot be combined with ball runner block R1671 8.. ..!
Product informationPlease configure the product to add it to the shopping cart.

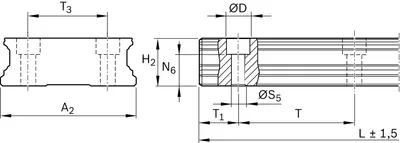

Pitch T guide rail [mm]60
Dimension A2 [mm]42
Dimension D [mm]7.4
Dimension H2 without cover strip [mm]18.3
Dimension N6 [mm]12.45
Dimension N6 tolerance [mm]±0.5
Dimension S5 [mm]4.4
Dimension T [mm]60
Dimension T1 max [mm]50
Dimension T1 min [mm]10
Dimension T1 s [mm]28
Dimension T3 [mm]24
Note: Dimensions T1 sPreferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
