Bosch Rexroth R160583331
The ball guide rail is highly precise and characterized by the following product features:<br>Size 20<br>Format SNS: Width = slimline, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover BS: Cover strip and strip clamp<br>Accuracy class high<br>Number of partial sections: one-piece<br>Rail in standard version
VersionBall rail system
Nominal size [mm]20
FormatSNS - Standard guide rail
Material (profiled rail systems)Carbon steel
Accuracy classH - Highly accurate
Guide rail mountingFor bolting from above
About This Product
The ball guide rail is highly precise and characterized by the following product features:<br>Size 20<br>Format SNS: Width = slimline, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover BS: Cover strip and strip clamp<br>Accuracy class high<br>Number of partial sections: one-piece<br>Rail in standard version
Bosch Rexroth R160583331
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
VersionBall rail system
Nominal size [mm]20
FormatSNS - Standard guide rail
Material (profiled rail systems)Carbon steel
Accuracy classH - Highly accurate
Guide rail mountingFor bolting from above
Guide rail coverWith cover strip and strip clamps
Max. length Lmax [mm]5816.0
Note: LmaxAvailable on request
Minimum length Lmin [mm]86.0
Number of holes nB64
Number of sections1-piece
Mass m (kg/m) [kg/m]2.4
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: Permissible ambient temperature (min. ... max.)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]0
Recommended rail lengthL = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product informationPlease configure the product to add it to the shopping cart.
Pitch T guide rail [mm]60

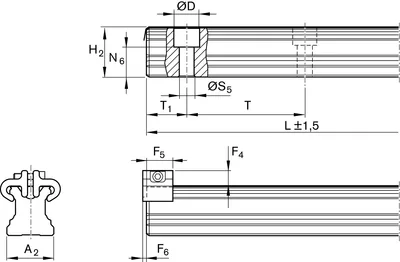

Dimension A2 [mm]20
Dimension D [mm]9.4
Dimension F4 with cover strip [mm]7.1
Dimension F5 [mm]12
Dimension F6 [mm]2
Dimension H2 with cover strip [mm]20.75
Note: H2 with cover stripWith cover strip 0.2 mm
Dimension N6 [mm]13.2
Dimension N6 tolerance [mm]±0.5
Dimension S5 [mm]6
Dimension T [mm]60
Dimension T1 max [mm]50
Dimension T1 min [mm]13
Dimension T1 s [mm]28
Note: Dimensions T1 sPreferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
Height of guide rail H2 with cover strip [mm]20.75
