Bosch Rexroth
0608801007
MFR #0608801007
SKU #YLSXGODUI09JVJ
Photo may not represent actual item. Refer to name and product specs for all details.
Bosch Rexroth R159B49001
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Nominal size [mm]BASA 75 x 10/20
Tightening torque [Nm]300
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]473100.0
Outer diameter D [mm]190.0
Weight [kg]53.4
About This Product
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Bosch Rexroth R159B49001
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size [mm]BASA 75 x 10/20
Tightening torque [Nm]300
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]473100.0
Outer diameter D [mm]190.0
Weight [kg]53.4
Limit speed (grease) nmax2025
Limit speed nmin [min⁻¹]2025
Static load capacity C0 [N]1123000.0
Note: Maximum rotary speed nmaxGuideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Note: Bearing frictional torque with sealMeasured at 50 rpm
Rigidity against tilting Rkl [Nm/mrad]7500
Bearing frictional torque with seal MRb [Nm]2.3
Rigidity of the bearing (axial) RFB [N/μm]1500

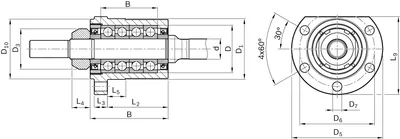

Dimension B [mm]235
Dimension D [mm]190
Dimension d [mm]90
Dimension d tolerance [mm]-0.02
Dimension D1 h7 [mm]219
Dimension D10 [mm]219
Dimension D3 [mm]125
Dimension D5 [mm]285
Dimension D6 [mm]252
Dimension D7 [mm]22
Dimension L2 [mm]174
Dimension L3 [mm]35
Dimension L4 [mm]32
Dimension L5 [mm]99
Dimension L9 [mm]257.5
Documents & CAD
For this product 2
CAD Files 2
