Bosch Rexroth
0608801007
MFR #0608801007
SKU #YLSXGODUI09JVJ
Photo may not represent actual item. Refer to name and product specs for all details.
Bosch Rexroth R159B46501
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Nominal size [mm]BASA 48 x 5/10/20,BASA 60 x 10/20
Tightening torque [Nm]200
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]305300.0
Outer diameter D [mm]140.0
Weight [kg]26
About This Product
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Bosch Rexroth R159B46501
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size [mm]BASA 48 x 5/10/20,BASA 60 x 10/20
Tightening torque [Nm]200
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]305300.0
Outer diameter D [mm]140.0
Weight [kg]26
Limit speed (grease) nmax2835
Limit speed nmin [min⁻¹]2835
Static load capacity C0 [N]615400.0
Note: Maximum rotary speed nmaxGuideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Note: Bearing frictional torque with sealMeasured at 50 rpm
Rigidity against tilting Rkl [Nm/mrad]3200
Bearing frictional torque with seal MRb [Nm]2
Rigidity of the bearing (axial) RFB [N/μm]1250

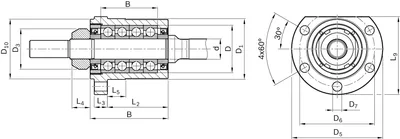

Dimension B [mm]180
Dimension D [mm]140
Dimension d [mm]65
Dimension d tolerance [mm]-0.015
Dimension D1 h7 [mm]170
Dimension D10 [mm]170
Dimension D3 [mm]95
Dimension D5 [mm]225
Dimension D6 [mm]198
Dimension D7 [mm]17.5
Dimension L2 [mm]133.5
Dimension L3 [mm]30
Dimension L4 [mm]28
Dimension L5 [mm]53.5
Dimension L9 [mm]199.5
