View Details
Bosch Rexroth
0608801007
MFR #0608801007
SKU #YLSXGODUI09JVJ
Photo may not represent actual item. Refer to name and product specs for all details.
Bosch Rexroth R159B45001
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Nominal size [mm]BASA 39 x 5/10
Tightening torque [Nm]110
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]208800.0
Outer diameter D [mm]110.0
Weight [kg]11.8
About This Product
The fixed bearing consists of: Angular-contact thrust ball bearing LGS, slotted nut NMB, suitable for screw ends type◡832, 842
Bosch Rexroth R159B45001
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size [mm]BASA 39 x 5/10
Tightening torque [Nm]110
Note: Tightening torqueMounting with hook wrench (DIN 1810)
Dynamic load capacity C [N]208800.0
Outer diameter D [mm]110.0
Weight [kg]11.8
Limit speed (grease) nmax3600
Limit speed nmin [min⁻¹]3600
Static load capacity C0 [N]392300.0
Note: Maximum rotary speed nmaxGuideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Note: Bearing frictional torque with sealMeasured at 50 rpm
Rigidity against tilting Rkl [Nm/mrad]1000
Bearing frictional torque with seal MRb [Nm]1.5
Rigidity of the bearing (axial) RFB [N/μm]750

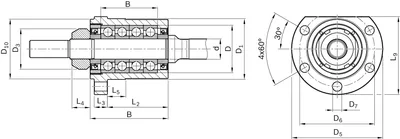

Dimension B [mm]140
Dimension D [mm]110
Dimension d [mm]50
Dimension d tolerance [mm]-0.012
Dimension D1 h7 [mm]130
Dimension D10 [mm]130
Dimension D3 [mm]75
Dimension D5 [mm]171
Dimension D6 [mm]152
Dimension D7 [mm]13
Dimension L2 [mm]98.5
Dimension L3 [mm]25
Dimension L4 [mm]25
Dimension L5 [mm]58.5
Dimension L9 [mm]152.5
